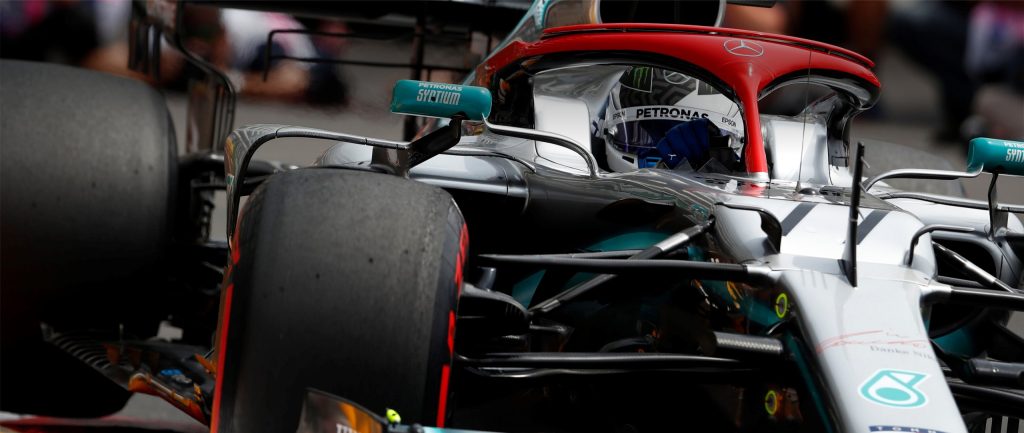

Suspension in Formula 1: A Critical Component of Performance
In Formula 1, every detail of a car’s design plays a crucial role in achieving peak performance. Among these, the suspension system is one of the most complex and finely tuned components. It not only affects the car’s handling and stability but also plays a significant role in aerodynamics and tire management. This article will break down how suspension works in F1, its evolution, and why it remains a key battleground for engineers.
Understanding Suspension in Formula 1 Cars
Suspension in an F1 car serves the same basic purpose as in road cars: to keep the tires in contact with the track while absorbing bumps and vibrations. However, due to the extreme speeds, high downforce, and precision required in F1, the suspension is engineered to be highly specialized.
Key Functions of an F1 Suspension System
- Maintaining Tire Contact – Ensures that the maximum surface area of the tire stays in touch with the track for optimal grip.
- Managing Load Transfers – Controls weight shifts under braking, acceleration, and cornering to keep the car stable.
- Enhancing Aerodynamics – Works in conjunction with the car’s aerodynamics to maintain a stable ride height.
- Absorbing Bumps and Kerbs – Allows the car to navigate uneven surfaces without unsettling its balance.
Unlike road cars, which use softer suspension to provide comfort, F1 cars have extremely stiff suspension setups to maintain stability and aerodynamic efficiency.
Front and Rear Suspension Design
Front Suspension
The front suspension is critical for directing the car and managing front-end grip. Modern F1 cars use a double wishbone suspension with pushrod or pullrod configurations.
- Pushrod Suspension: The pushrod connects the wheel assembly to an internal rocker, which then transfers forces to the springs and dampers. This setup is common at the front due to its aerodynamic advantages.
- Pullrod Suspension: A lower-mounted rod pulls on the internal rocker, offering a lower center of gravity and better airflow management.
Rear Suspension
The rear suspension is responsible for handling immense loads from acceleration and cornering forces. It also plays a major role in controlling rear-end aerodynamics.
- Rear suspension also utilizes pushrod or pullrod systems, with the latter being more common in recent years due to its benefits in lowering weight and improving airflow.
Both front and rear suspensions are constructed using high-strength materials like carbon fiber and titanium to maximize durability while minimizing weight.
How Suspension Affects Aerodynamics
Suspension settings directly influence an F1 car’s aerodynamics, particularly through ride height control. Since F1 cars generate substantial downforce, the suspension must be designed to maintain an optimal ride height, ensuring that airflow remains stable under the car.
- Too soft a suspension can cause excessive movement, disrupting aerodynamics.
- Too stiff a suspension may lead to a loss of mechanical grip, making the car difficult to handle over bumps or kerbs.
Teams continuously adjust suspension stiffness, damping rates, and ride height depending on track characteristics. For example, circuits with smooth surfaces, like Silverstone, allow for stiffer setups, while bumpy tracks, such as Singapore, require a softer approach.
The Ban on Active Suspension
One of the most significant developments in F1 suspension history was the introduction and subsequent banning of active suspension.
- In the late 1980s and early 1990s, active suspension systems were developed to automatically adjust ride height and stiffness in real-time, optimizing performance for every corner and straight.
- Williams pioneered this technology, leading to dominant seasons in the early 1990s.
- However, in 1994, active suspension was banned to reduce costs and maintain driver skill as a crucial factor in performance.
Despite the ban, modern F1 cars still use highly advanced semi-active suspension systems, with teams fine-tuning suspension geometry, torsion bars, and dampers to simulate some of the benefits of active suspension without violating regulations.
Current Trends and Suspension Challenges in F1
2022 Regulation Changes and the Return of Ground Effect
With the new era of F1 cars introduced in 2022, which rely heavily on ground effect aerodynamics, suspension design has become even more critical.
- Teams must manage “porpoising,” a bouncing phenomenon caused by ground effect-induced aerodynamic instability.
- Stiffer suspension setups are required to maintain low ride heights, but this compromises comfort and mechanical grip.
- Innovations in hydraulic suspension and alternative damper designs are being explored to mitigate these issues.
Challenges in Suspension Setup
Suspension tuning is a balancing act that varies from race to race. Engineers must consider:
- Track-specific demands (bumpy circuits vs. smooth circuits)
- Weather conditions (wet races require softer setups)
- Tire degradation (managing wear while maintaining performance)
- Driver preferences (some prefer a more responsive front end, while others favor stability)
Conclusion
The suspension system in an F1 car is a finely tuned masterpiece of engineering, influencing everything from grip levels to aerodynamics. While F1 cars no longer use active suspension, teams continuously push the limits of technology within the regulations to extract maximum performance.
As Formula 1 continues to evolve, the role of suspension will remain a critical area of development, shaping how teams optimize their cars for different circuits, weather conditions, and racing strategies. The battle for supremacy on the track is not just about engine power and aerodynamics—it is also won through meticulous suspension engineering.
